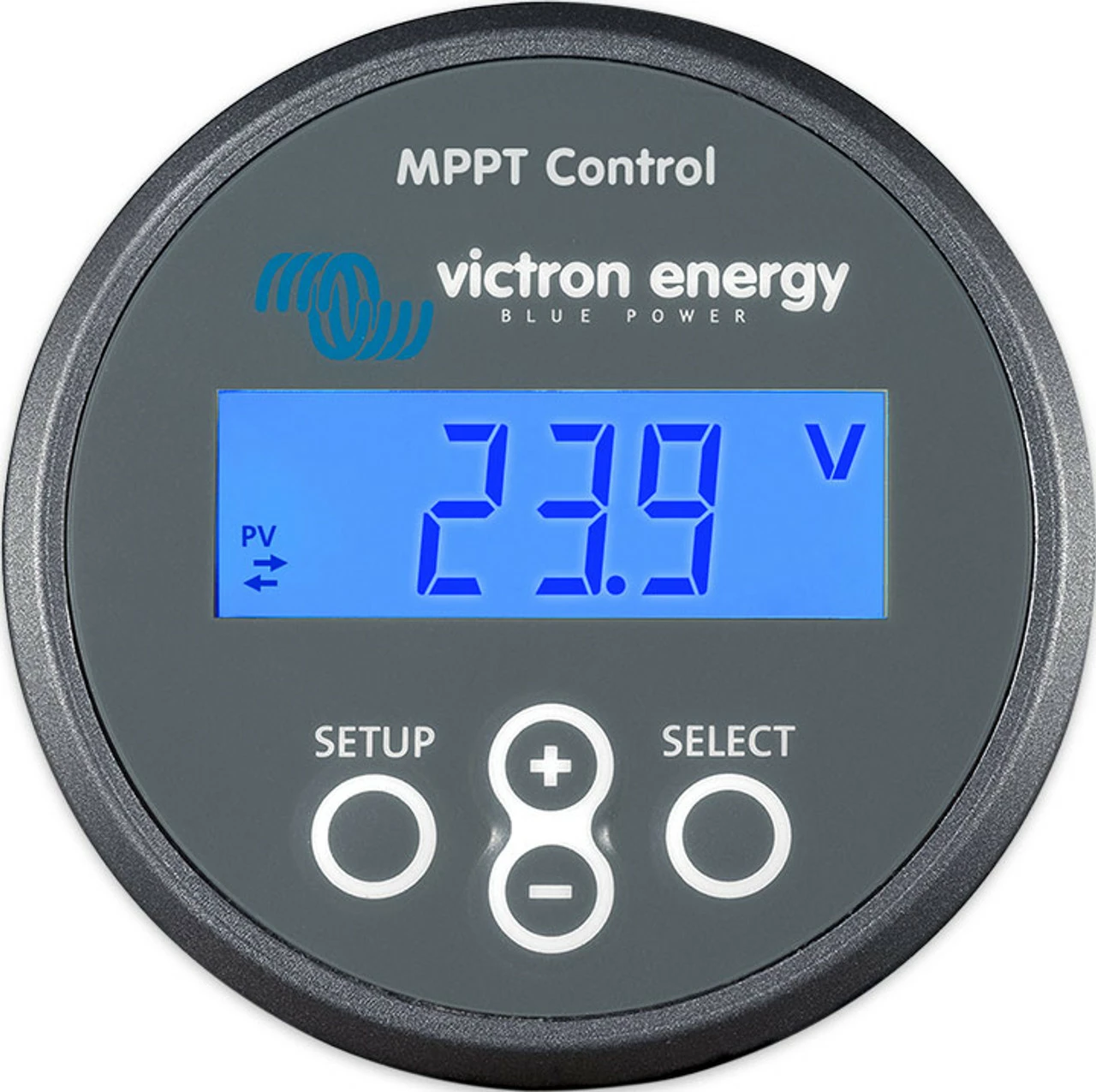

Victron Energy MPPT Control Panel Display

Stylish and practical LCD display for Victron MPPT solar charge controllers

This LED display is wall-mountable, giving you a clear readout of your solar energy yields at any time. The screen is capable of reporting solar watts, battery voltage, charge current, load current and more, as well as both 30-day and all-time historical values. Four buttons allow you to navigate the display and customise the readout to the readings that matter to you most. A cool blue backlight lets you read the display in any light conditions, and can be dimmed or turned off if you prefer.

Suitable for all BlueSolar MPPT charge controllers that use a VE.Direct communications port.

part no. SCC900500000

Manual:

Technical Specifications:

Supply voltage range when powered from battery:

6.5 – 95V DC

Supply voltage range when powered via VE.Direct cable:

5V DC

Power consumption with back-light turned off:

Power cable fuse rating:

100mA

Front diameter:

63mm (2.5″)

Body depth:

31mm (1.2″)

Power cable length:

1.5m

Weight:

50g
