PV Logic 200w Motor Home Solar Panel Kit with 15 amp MPPT Controller

The perfect solar energy solution for people with high power necessities, the PV Logic 200w Solar Panel Kit provides maximum power from the smallest possible module size making it ideal for boats, motorhomes and caravans with space or weight restrictions.  The PV Logic 200w Solar Panel Kit is a tough, durable and efficient energy solution suitable for powering an assortment of consumption devices with the added reliability of being suitable for outdoor use as well as water resistant.

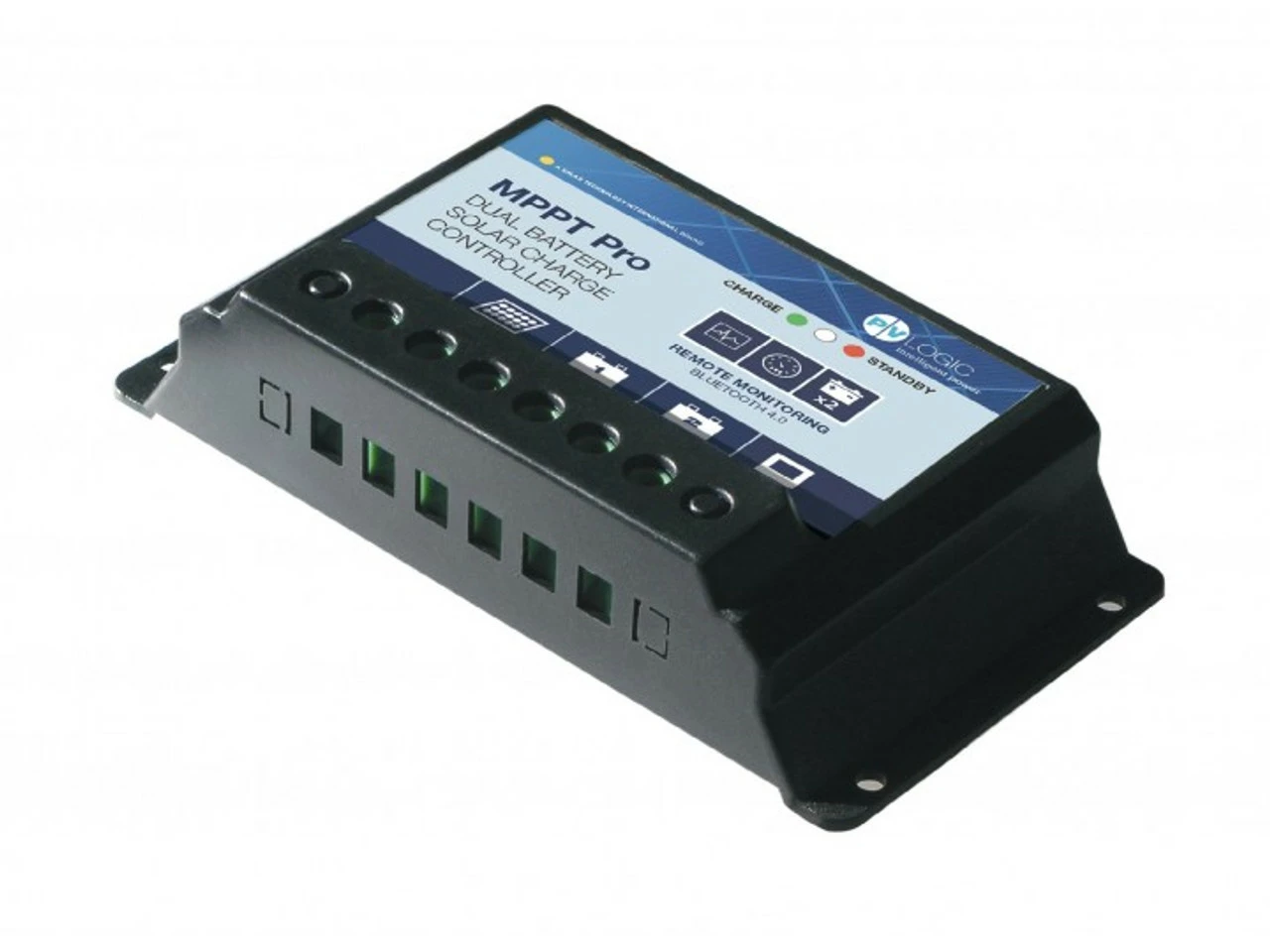

15 amp MPPT Charge Controller included

The PV Logic 200w Solar Panel Kit also comes supplied with a 15amp MPPT (Maximum power point tracking). Charge Controller which increases panel efficiency, protects the battery from being overcharged and also prevents reverse current drain.

What is an MPPT Controller?

An MPPT, or maximum power point tracker, is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank in your campervan, caravan or motorhome. To put it simply, they convert a higher voltage DC output from solar panels down to the lower voltage needed to charge batteries.

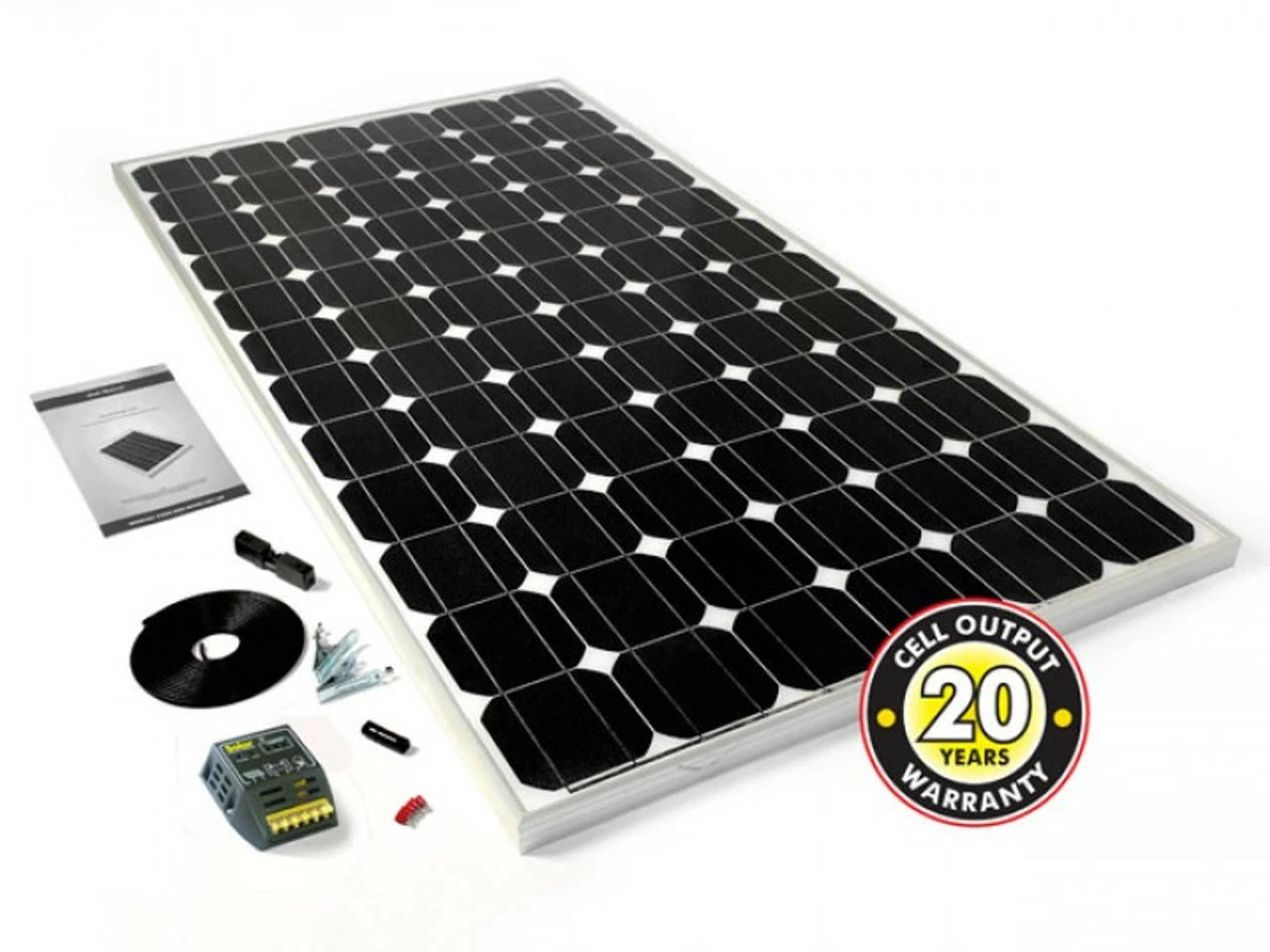

PV Logic 200w Solar Panel Kit contents

• 1 x STP200 – 200w solar panel
• 1 x 4m Cable
• 1 x Fuse
• 1 x In Line Connector
• 2 x Crocodile Clips
• 6 x Ring Terminals
• 1 x Instruction Sheet
• 1 x Sealant
• 1 x 15a MPPT Charge controller
• 4 x Angle mounting Brackets

Panel Specification:

Power	Size	Weight (Kg)	Watts per day (w)	Amp hours per day (A)
200w	1850 x 670 x 35mm	14.8	1200	60.4







Vmp (VDC)	IMP (A)	Voc(V)	Isc (A)	Charge Controller
17.5	10.5	22	11.45	15 amp MPPT

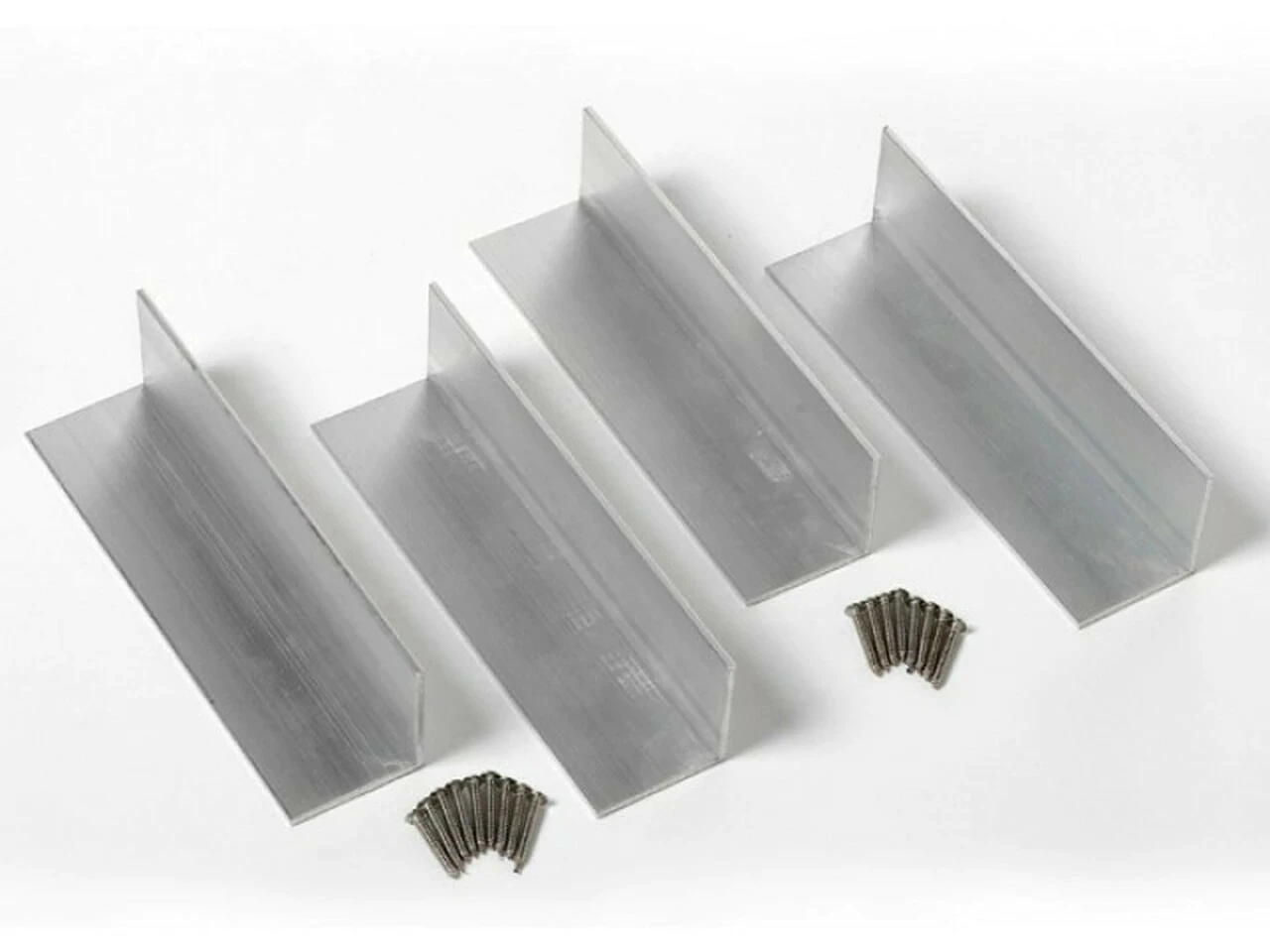

Mounting brackets FKA08  included, other styles of fitting kit are available at extra cost.

What output can I expect?

During summer in the UK we expect 4-6 hours of peak power (where the panel is producing close to its maximum output). During the winter in the UK its about 2-3 hours.

eg. Summers day can produce 200w per hour for 4-6 hours generating around 800w-1200w.

The PV logic 200 watt solar panel kit will, at its nominal out, be producing approximately 10.5 amps per hour to feed into your Leisure Batteries

PV Logic 200w MPPT Solar Panel Kit features

• High efficiency crystalline cell for “all weather” charging
• Perfect for TV operation and for permanent fitting
• Water resistant, robust construction for outdoor use.

---

Technical Specifications:

Power:

200 watts

Estimated UK Summers Day Output:

800w-1200w / 40-60ah

Peak Output:

10.5 @ 19v DC

Dimensions:

1850 x 670 x 40mm

Weight:

14kg
