These solar panel corner brackets can be used with aluminium frame solar panels providing a stable fixing for caravan and marine applications. The corner mounts raise the solar panels to the ideal height above the surface of the vehicle providing ventilation below and highest efficiency possible.

The perfect fixing method for caravans and boats (no need to drill holes)

Solar panel glue mounting brackets are the ideal way to fix solar panels onto the roof or deck of motorhomes, caravans and boats. The mounts can be safely bonded to the surface ideally with Sikaflex 252. Acting as wind deflectors they maintain the gap between the solar panel & the roof top or deck.

Specifications

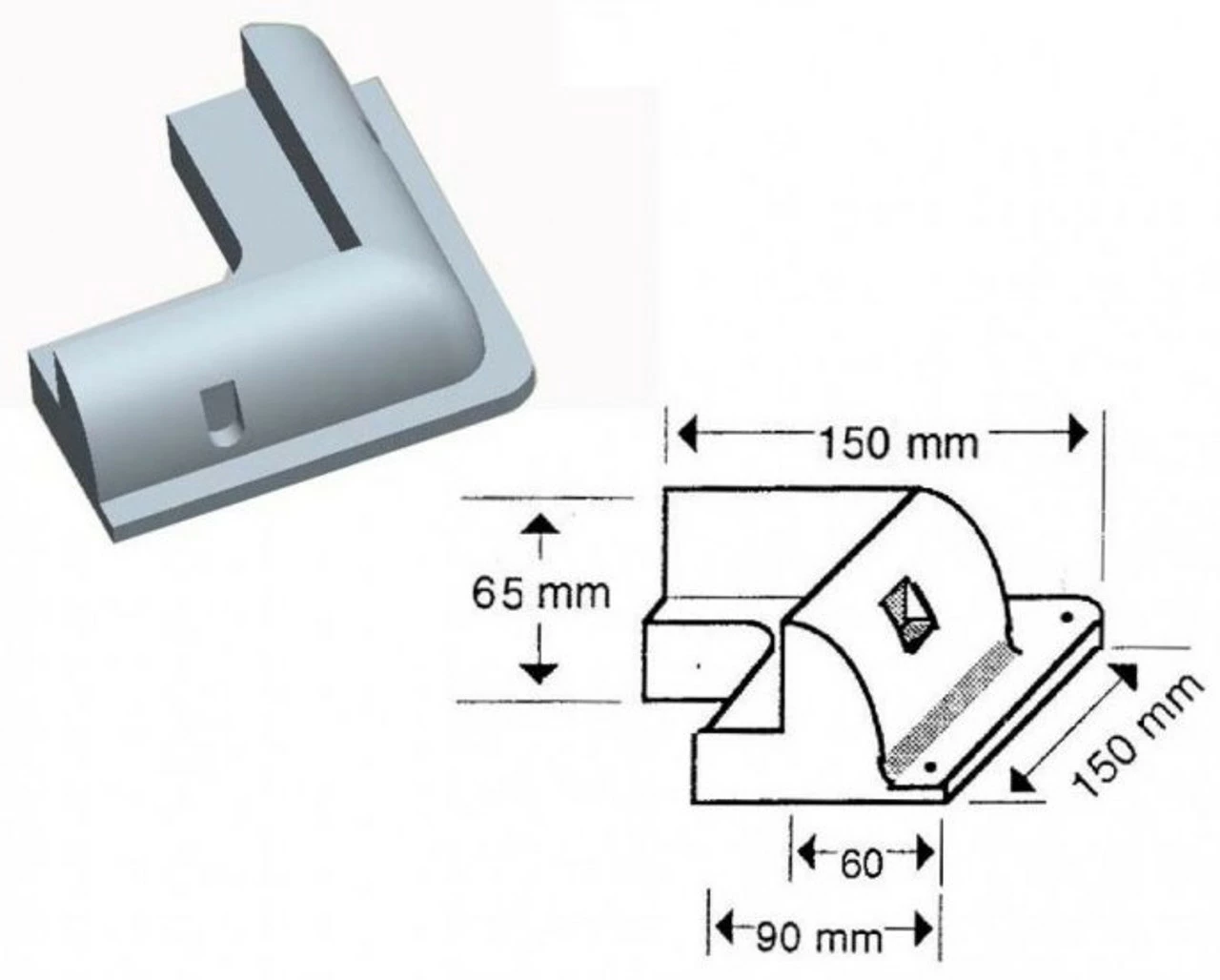

• Dimensions: 150mm x 150mm x 65mm
• For aluminium framed solar panels
• Larger panels 80w and above require additional side mounting brackets (product code JLS08003BS05)
• Black ABS plastic
• Recommended adhesive Sikaflex 252

Installation:

The corner brackets are screwed or bolted to the solar unit using stainless steel self-tapping screws. Once the brackets are attached to the panel its ready to be glued to the roof surface or deck using Sikaflex 252, other glues may not be strong or weather proof enough. Full instructions included.
